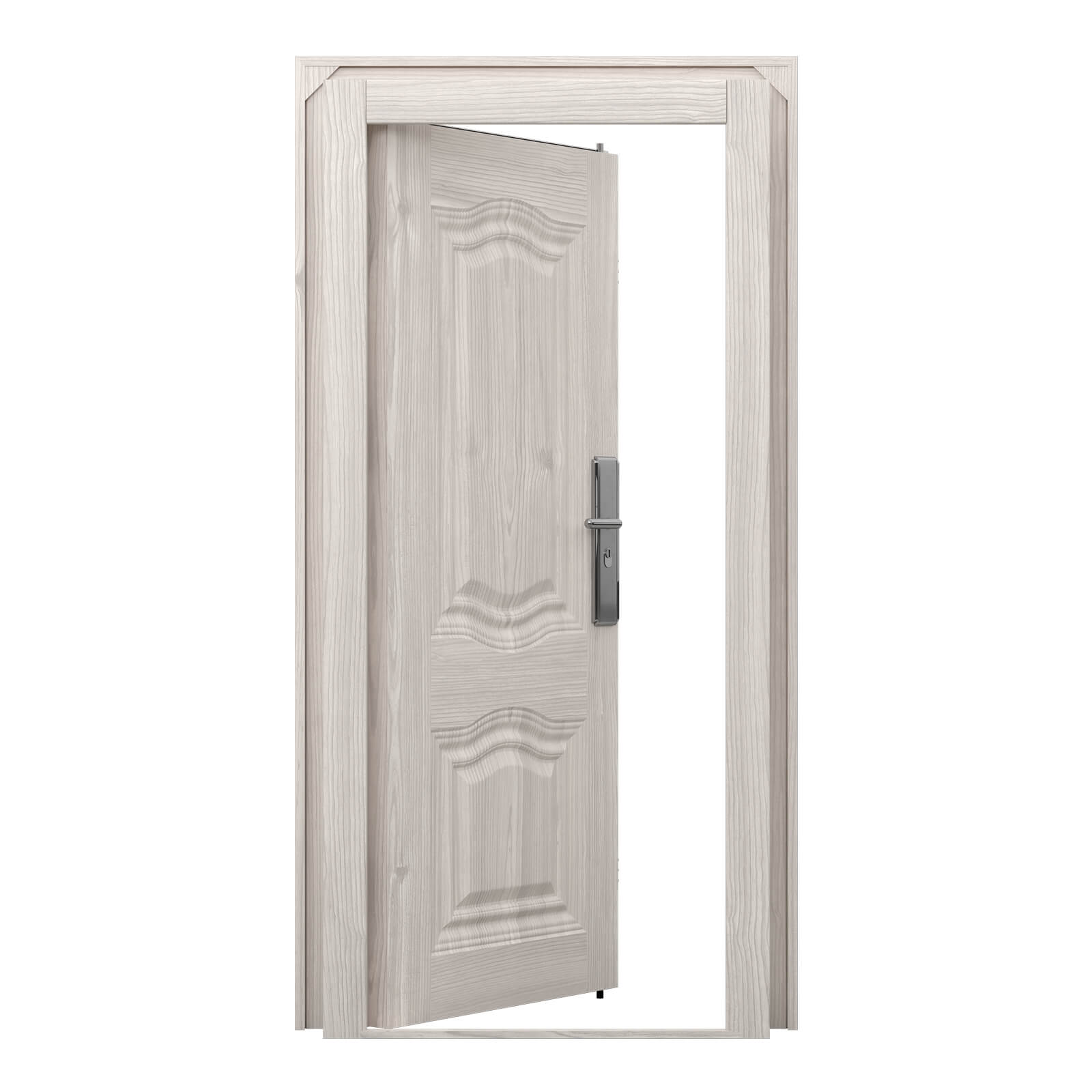

Windsor

With a style and finish to really impress along with an uncanny white wood grain effect or pristine black option ensure that the Windsor door is perfect for any application.

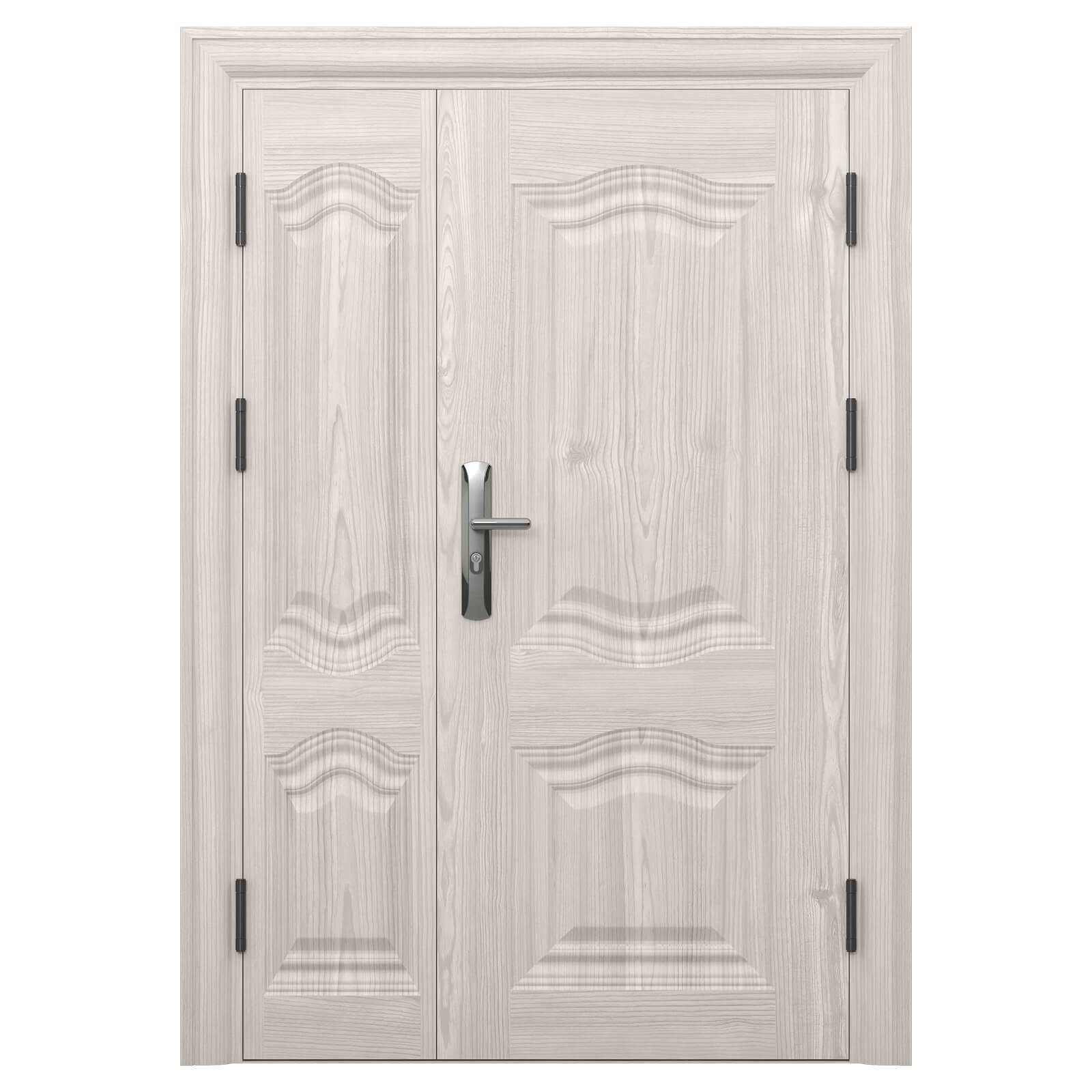

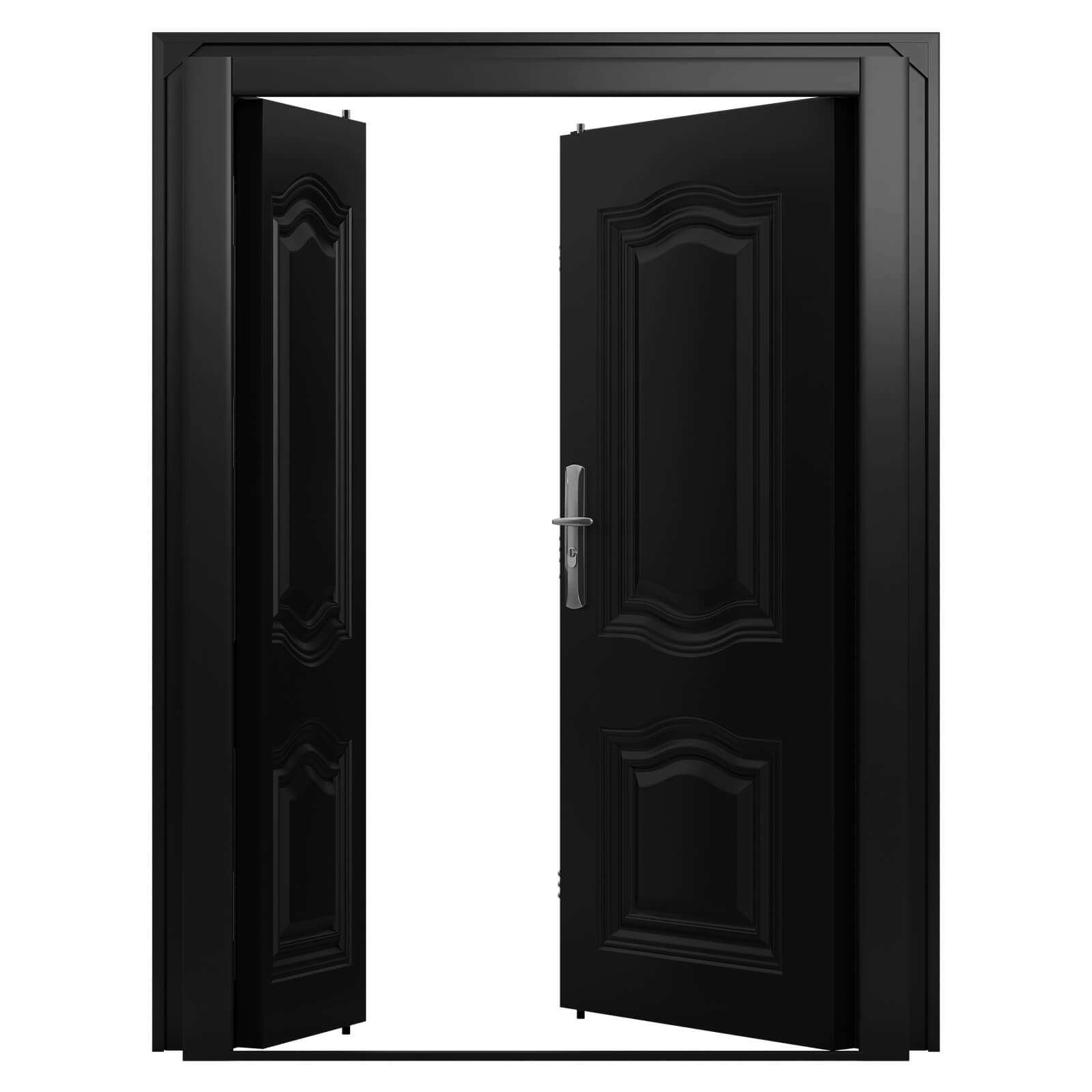

Available in both single and leaf & a half form, you can be assured that whatever your use the Windsor will offer our same high levels of security and quality.

Available Options

Colour:
White Maple
Obsidian Black

Sizes:

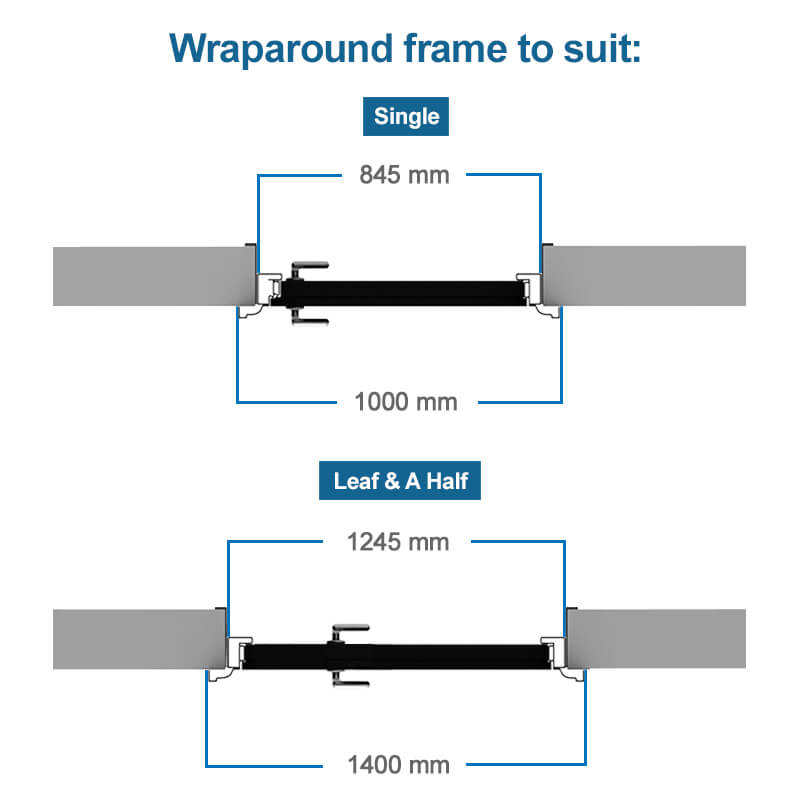

Wraparound frame to suit 845-945mm(w) x 2020-2100mm(h)
Wraparound frame to suit 1245-1345mm(w) x 2020-2100mm(h)

Hinge Side & Opening:

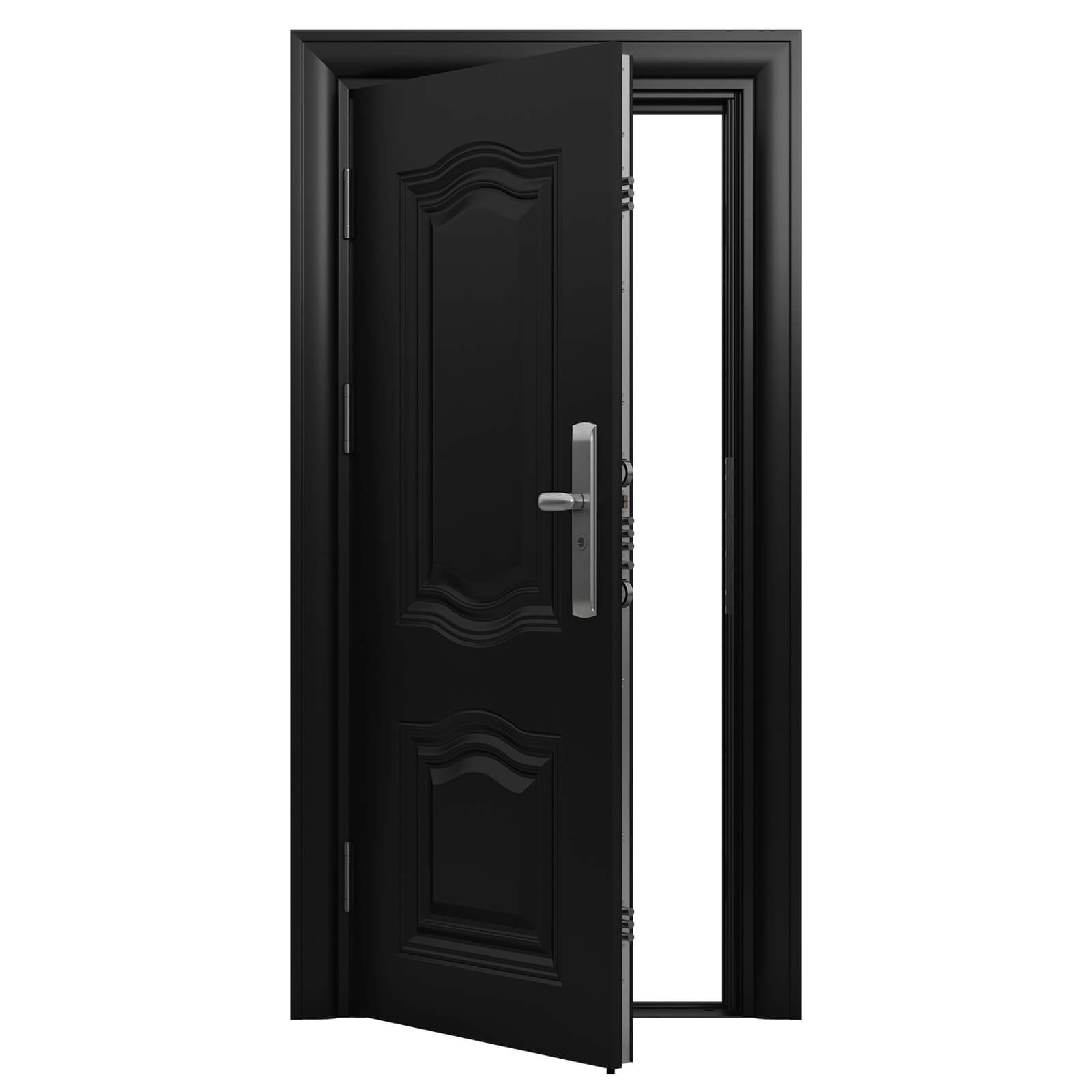

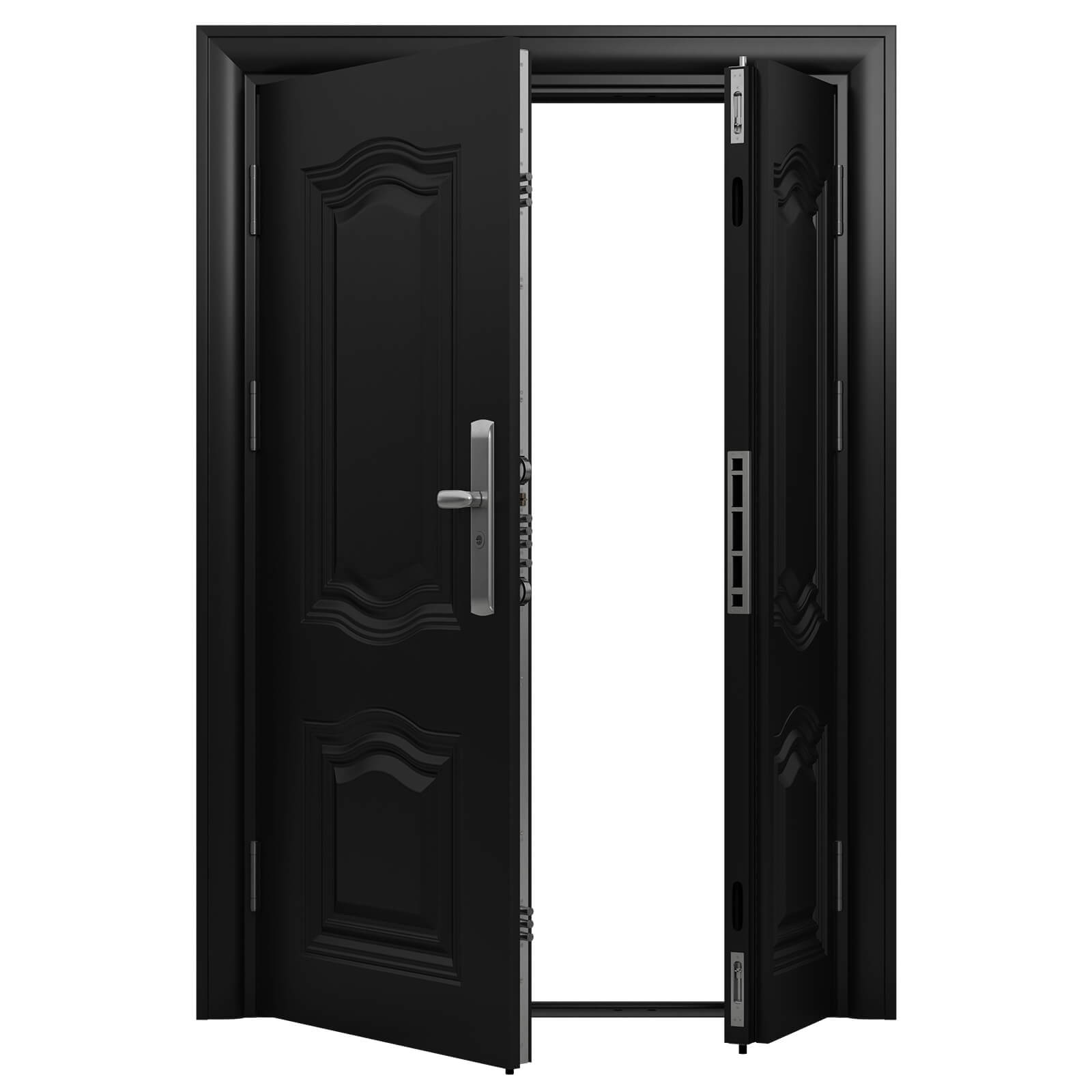

Left Hinged Opening Inwards or Outwards

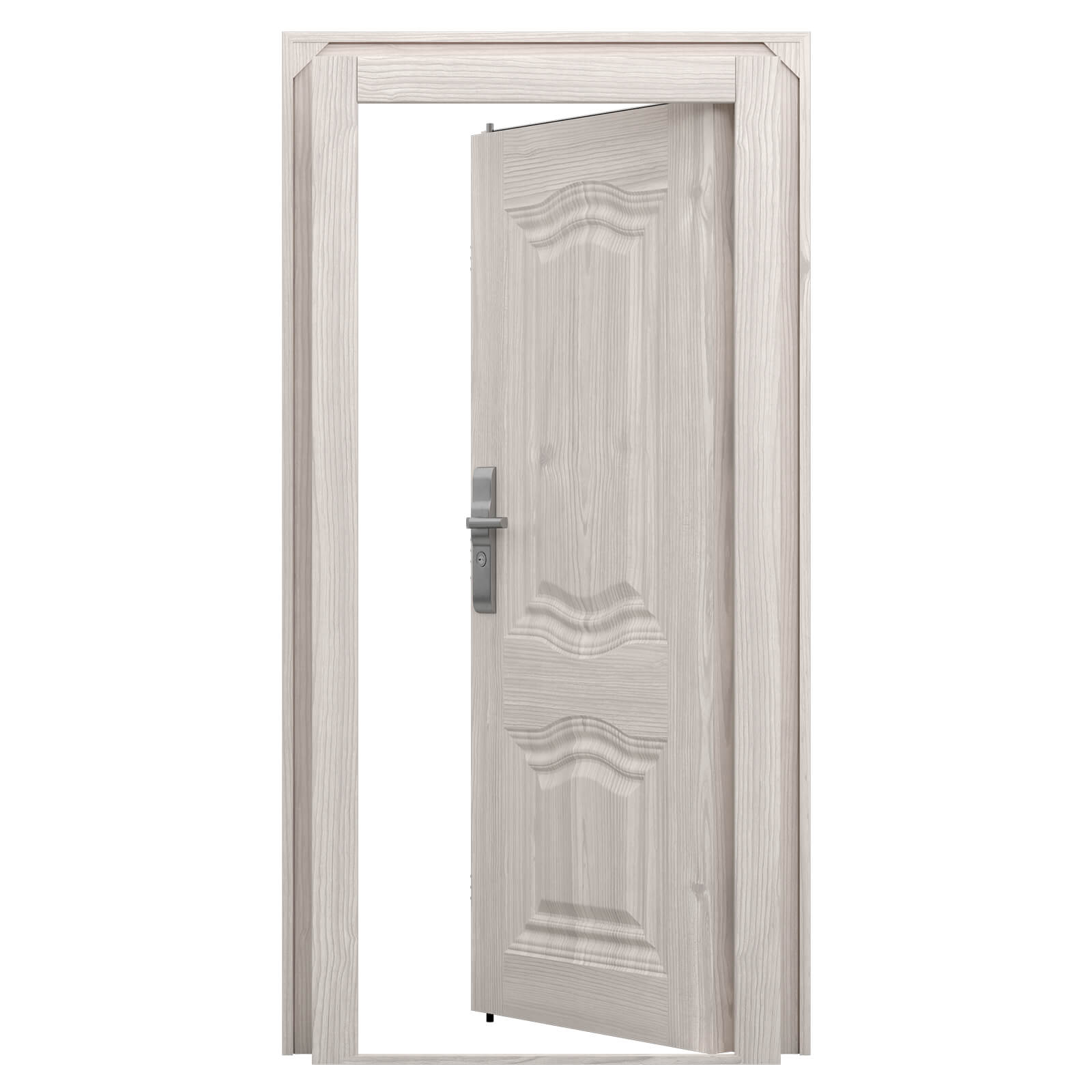

Right Hinged Opening Inwards or Outwards

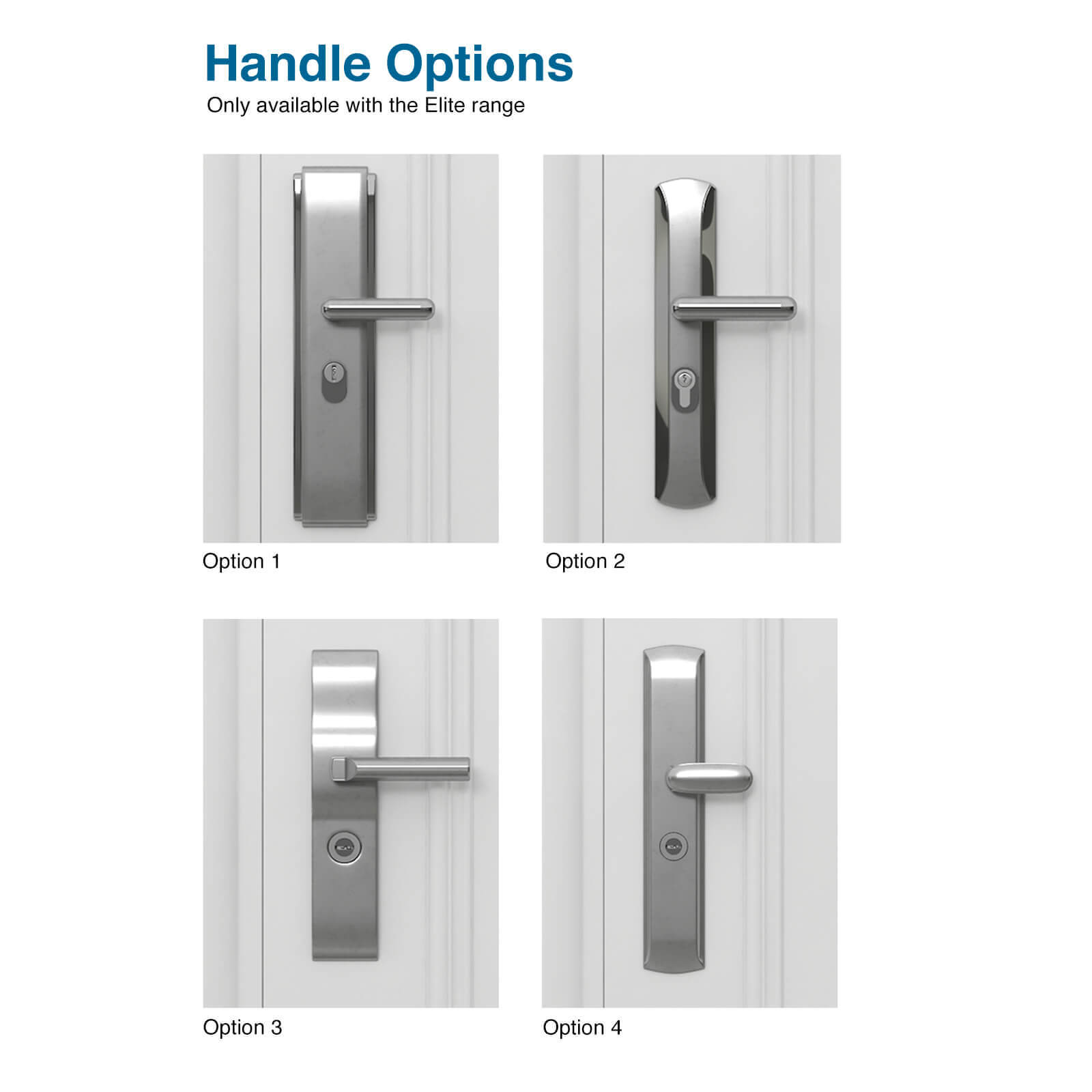

Handle Options:
Option 1, Option 2, Option 3, Option 4

Category:

High Quality Finish

A heavy duty finish to the steel door and frame. This allows the door to be used in industrial, commercial and domestic situations, giving the same high security, whilst still being aesthetically pleasing.

Draught And Weatherproof Seals

Pre-fitted to the doorset are all-round draught and weatherproof seals, sealing the door from water and draught, contributing towards high acoustic and thermal values.

Heavy Duty Hinges

3 Stainless steel hinges and 2 Dog bolts (fixed locking points) are on the hinge side of door leaf.

DDA Compliant Threshold

Disability Discrimination Act specifies a level threshold with a maximum upstand of 15mm with chamfered edges.

Anti Jemmy Bar Lips

2 anti jemmy bar lips are integrated into the door & frame, including on the top and hinge side, for added security.

Lever Handles

A stylish set of heavy duty stainless steel lever handles finish off the clean look of the doorset. With a highly functional thumb turn internally, a separate single lock can be engaged for rapid security without keys.

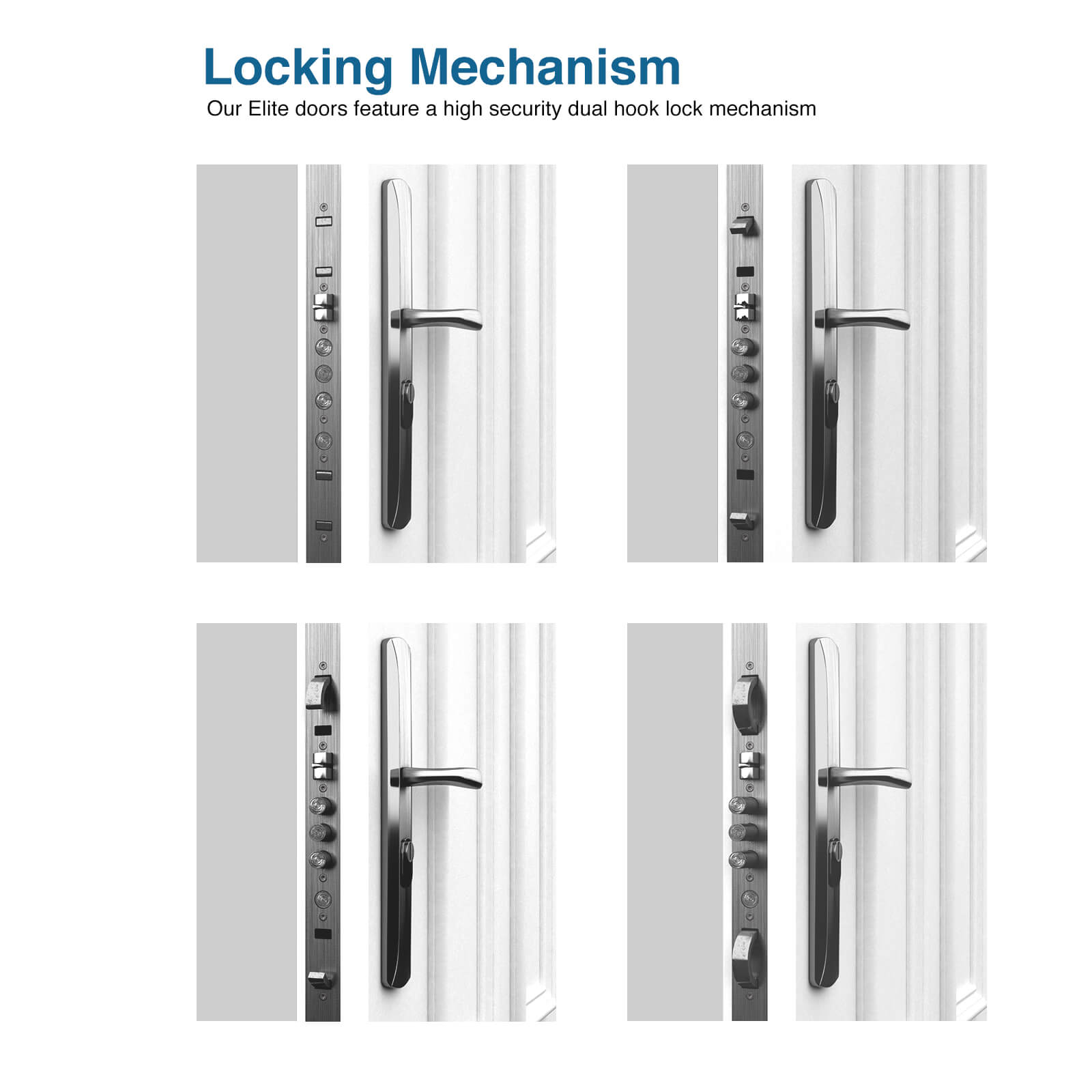

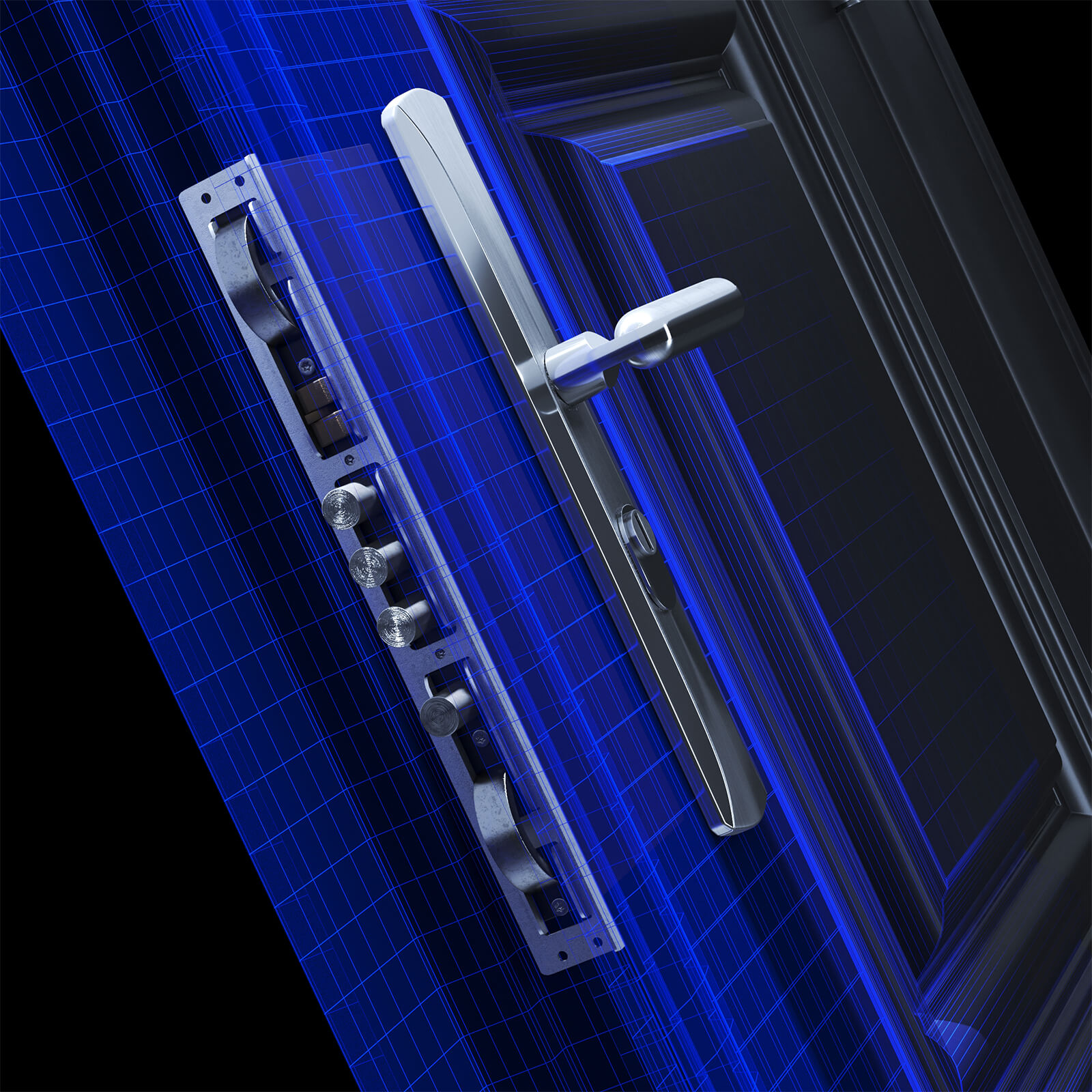

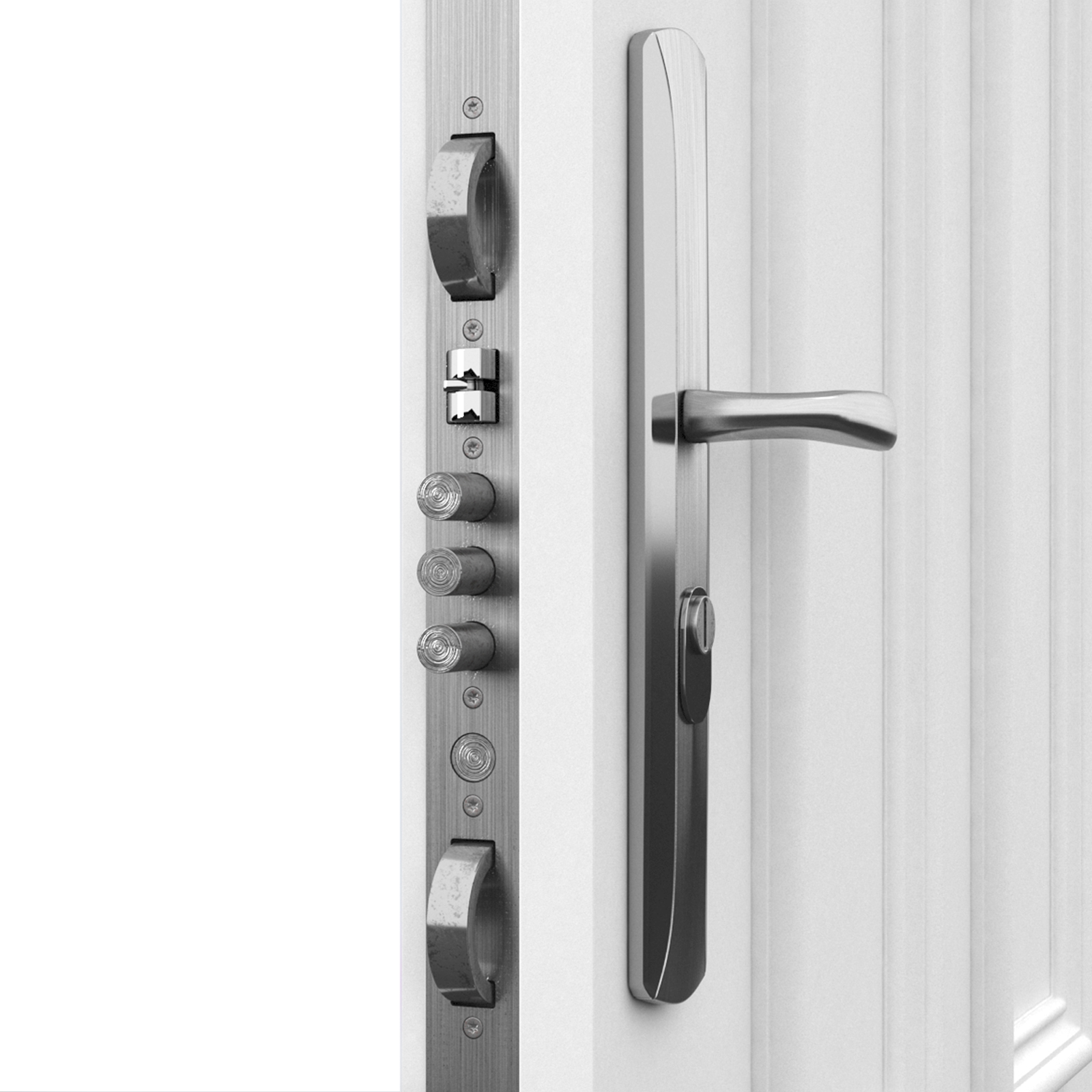

Multi Point Locking Shoot Bolt Mechanism

A shoot bolt into the top of the frame, 10 shoot bolts into the latching side of the frame along with 2 ring hooks. Including the 2 dog bolts and latch, in total 16 points secure the door leaf in the frame.

Fully Welded Construction For Optimum Strength

The doorframe is constructed using 2.0mm gauge steel and double skinned 1.0mm gauge steel for the door leaf. The door leaf is fully welded, encasing a honeycomb filler between the 2 skins, adding to it’s high impact, thermal and acoustic values.

Heavy Duty Euro Profile Cylinder

Incorporating anti-pick, anti-bump, anti-snap, anti-drill and anti-pull features.

Versatile Frame configuration

The innovative frame design allows for fitting in almost any situation.

Our Elite range of doors offer the same uncompromising level of security for which we are so highly regarded, but with a style and finish to really impress. Uncanny wood effect finishes and pristine black or white options ensure that there is an Elite door for every high end application.

Colour

Obsidian Black, White Maple

Construction

Fully welded construction

Cylinder

Heavy Duty Euro Profile Cylinder

Door Frame Material

2.0mm gauge steel

Door Leaf Core

Honeycomb core

Door Leaf Material

Double skinned 1.0mm gauge steel

Handles

Thick stainless steel lever handles

Hinges

3 Stainless steel lift-off hinges

Locks or Door Furniture

Superior multi point locking system

Door Type

Panelled

Jemmy Bar Lip

At door jam, hinge side & top. Superior ‘barb-like’ design

Seal

Weather / draught proof seals
